Capintec CapLift
5130-30251

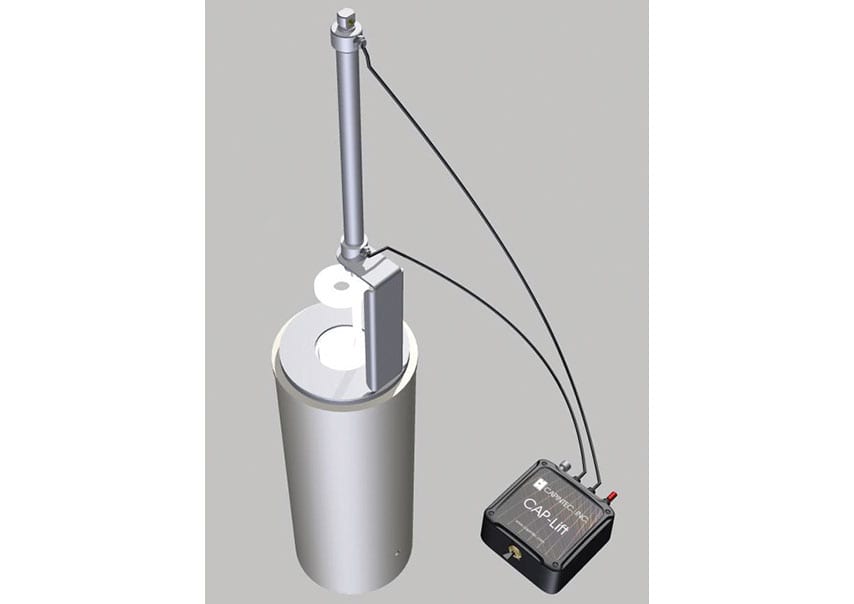

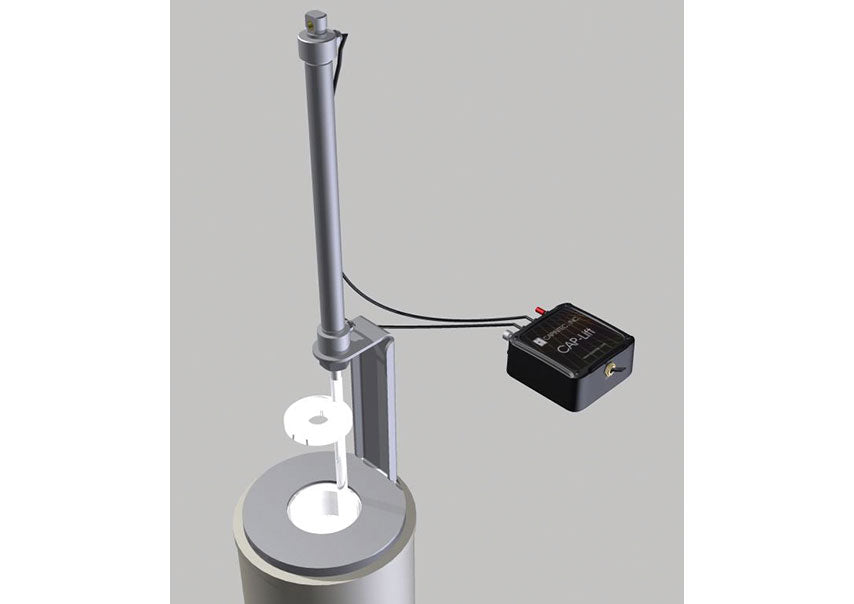

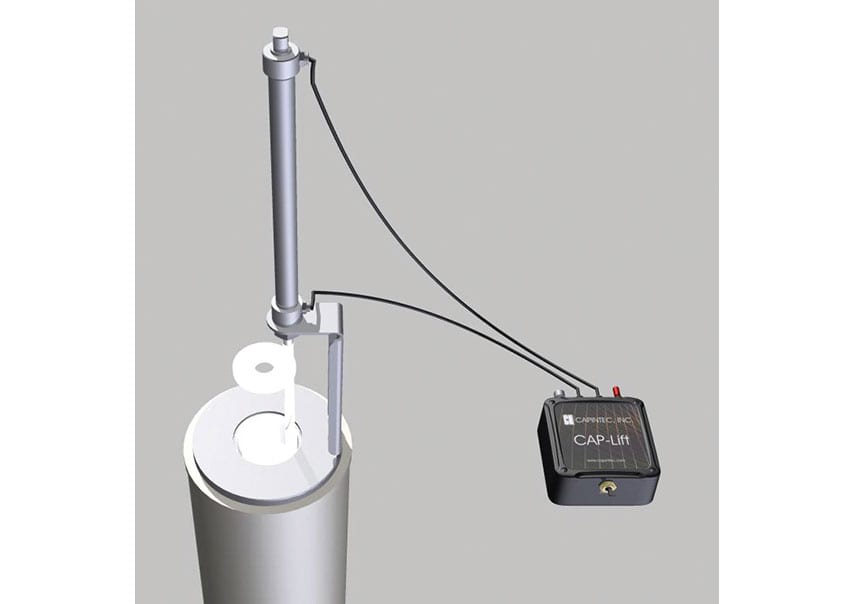

The Capintec CapLift provides hands free dose measurements for Capintec dose calibrators.
OVERVIEW
Hands free dose measurements for Capintec dose calibrators.
FEATURES
- Reduces hand and body exposure
- Stainless steel construction
- Auto return to elevated dose reception position
- Small size hand control and/or optional foot switch
- Standard and optional custom lengths
- Color coded supply lines
- Perfect alignment with all Capintec dose calibrators
- Pneumatic system for faster operations
- No electrical power needed
- Foot pedal accessory included
Note: This unit requires a low pressure or regulated pressure to operate. A minimum of 25psi supply line is needed.
SPECIFICATIONS
DIMENSIONS
- Height of lift mechanism: 19.25″ (48.9 cm) from top of chamber
- Diameter of lift stand: 6″ (15.25 cm) at top of chamber
- Travel: 8″ (20.3 cm) (Standard) Custom travel lengths available for situations where lift stand is not sitting directly on the chamber
- Control Box Dimensions: 4″ h x 4″ w x 2″ d (10.1 x 10.1 x 5 cm)
Related Items

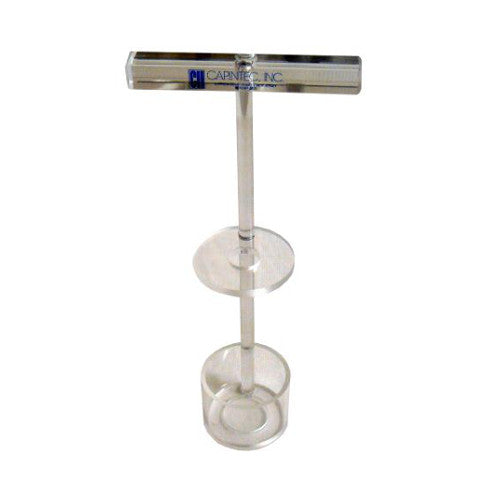

Capintec Well Dipper
